Equipment capacity: 1000 BPH, single-machine efficiency ≥98%.
WX-1

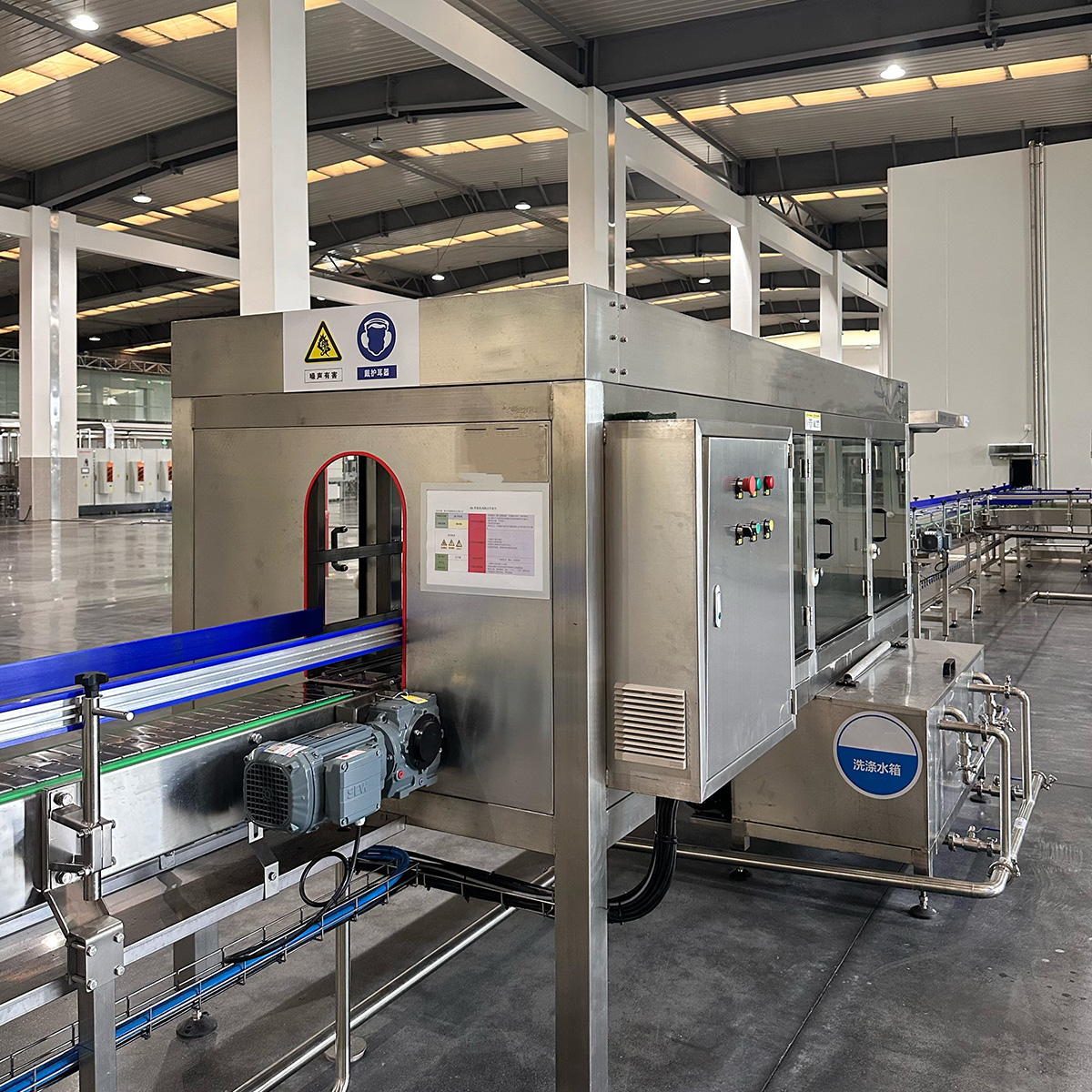

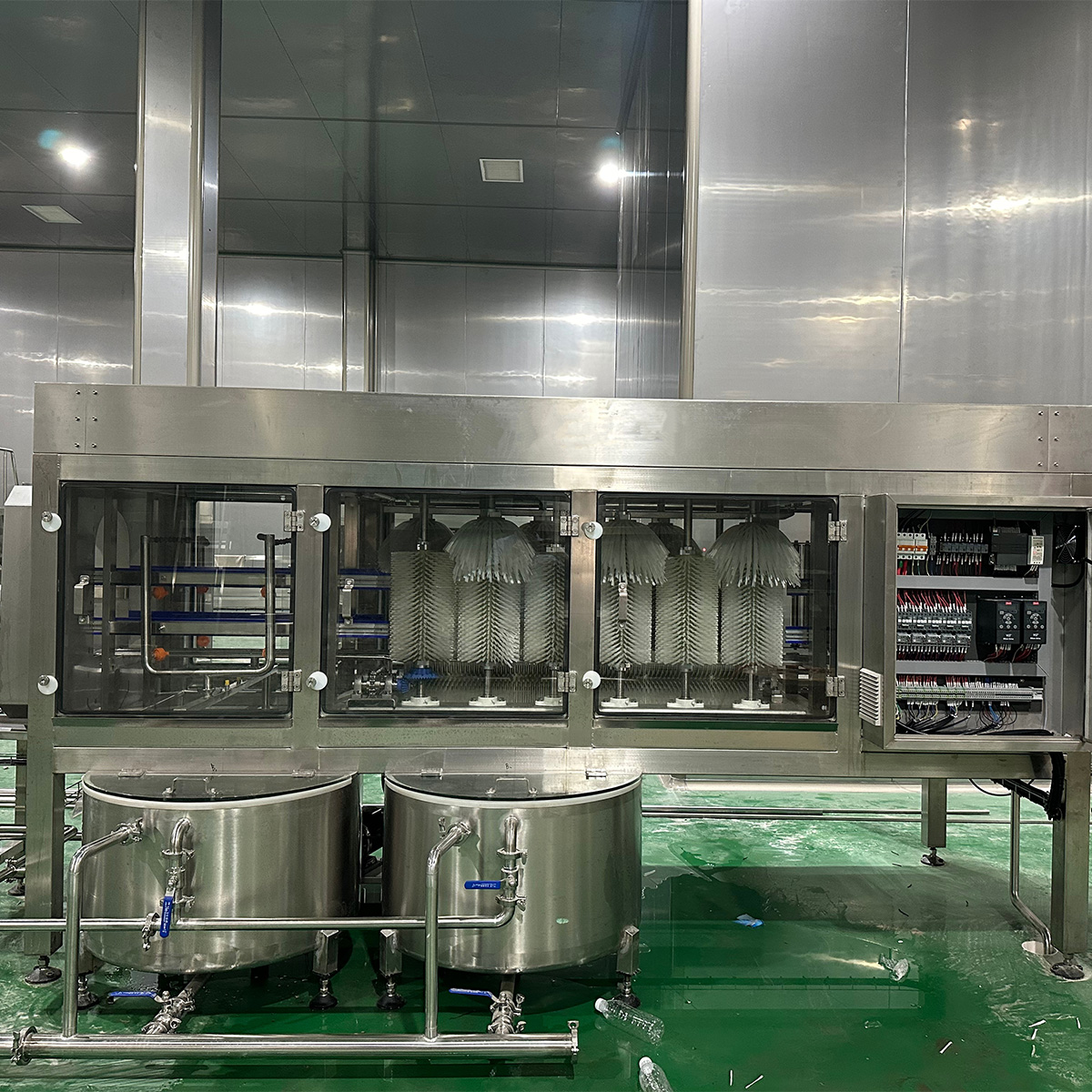

External Washing Machine
Cleans the outer surface of bottles using rotating brushes and spray systems to remove dirt, label residues, and contaminants, providing a clean surface before internal washing and filling.
Sensor
Omron Optoelectronics
PLC
Siemens
Electrical Components
Snyder
Flushing Pressure
0.2MPa
Water Consumption
3T/H
Total Power
3.5KW*400V/50HZ/3P
Material
304
Dimensions
2400×1200×1880mm
Weight
500KG
Technical Indicators
Equipped with a Southern stainless steel vertical pump.
Semi-external water tank, equipped with low liquid level detection, mechanical automatic water replenishment, and a drawer-type 200-mesh filter.

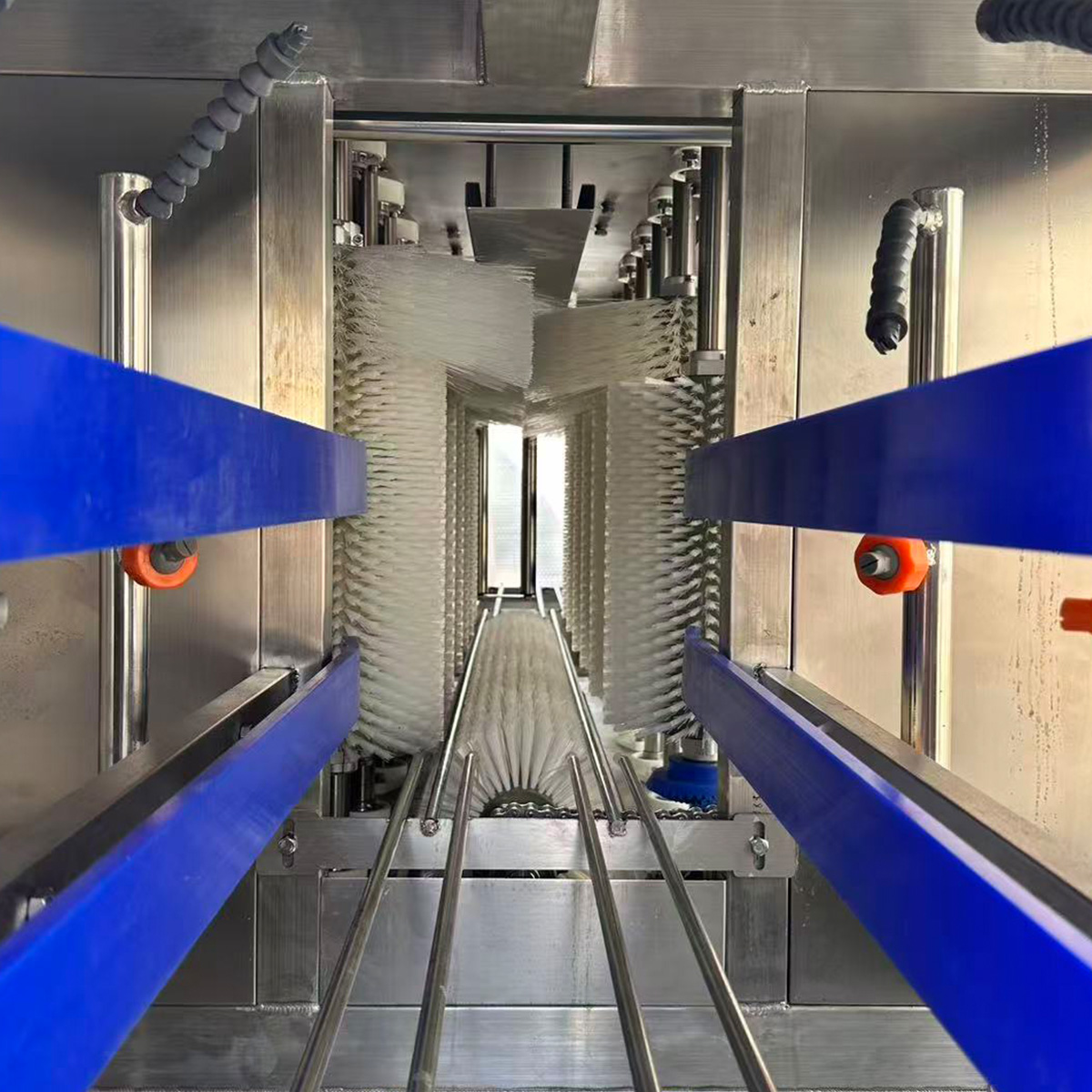

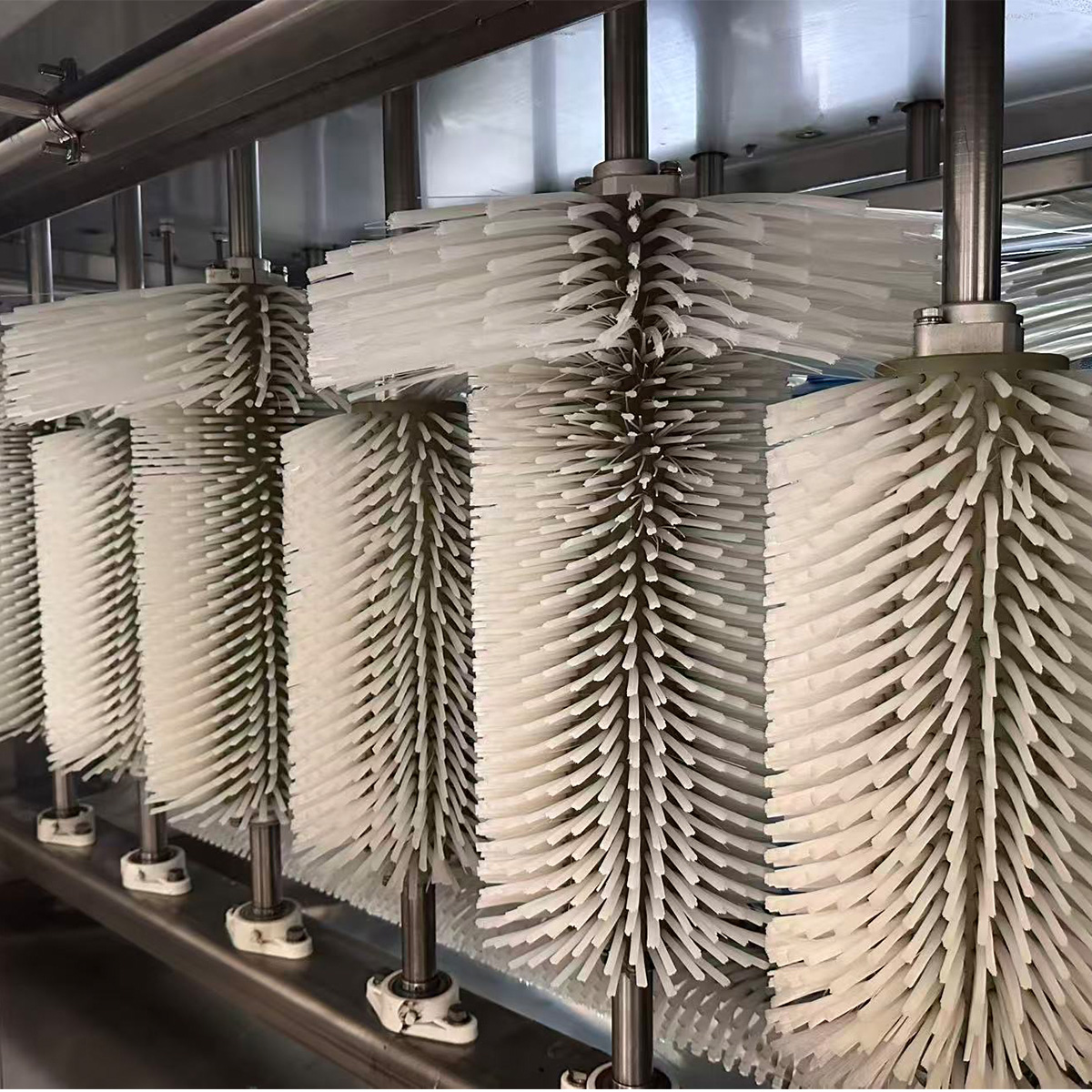

The main brush structure consists of 8 cylindrical side brushes, 1 cylindrical bottom brush, and contour brushes, enabling 360-degree brushing of the bottle's outer surface (including the shoulder and mouth), ensuring the empty bottle rotates at least 1080 degrees during the external washing process.
Made of 304 stainless steel, with a square tube welded structure; the power structure is at least 3mm thick. The mechanical transmission device uses corrosion-resistant bearings and chains. The transmission structure must be equipped with guardrails and have an automatic clutch function to prevent damage to the bottle or structural components under abnormal conditions.
