GMBG-1

Film Cutting and Capping Machine

Designed for automatic cutting of the protective seal and removal of caps from returned 5-gallon bottles before washing. The machine replaces manual operations, improves efficiency, and reduces contamination risks. Compatible with different bottle brands and cap conditions.

Sensor

Omron Optoelectronics

PLC

Mitsubishi

Touchscreen

Weintek

Electrical Components

Snyder

Pneumatic Components

Airtac

Stepper Motor

Zhejiang Ouli

Temperature Controller

TMC

Total Power

4KW

Material

304

Dimensions

1100*650*2000mm

Weight

200KG

Air Consumption

0.3m³/min

Quote Now Get Our 2026 Catalog

Share:

Technical Indicators

Equipment capacity: 1000 BPH; single-machine efficiency ≥95%; leakage rate ≤5%.

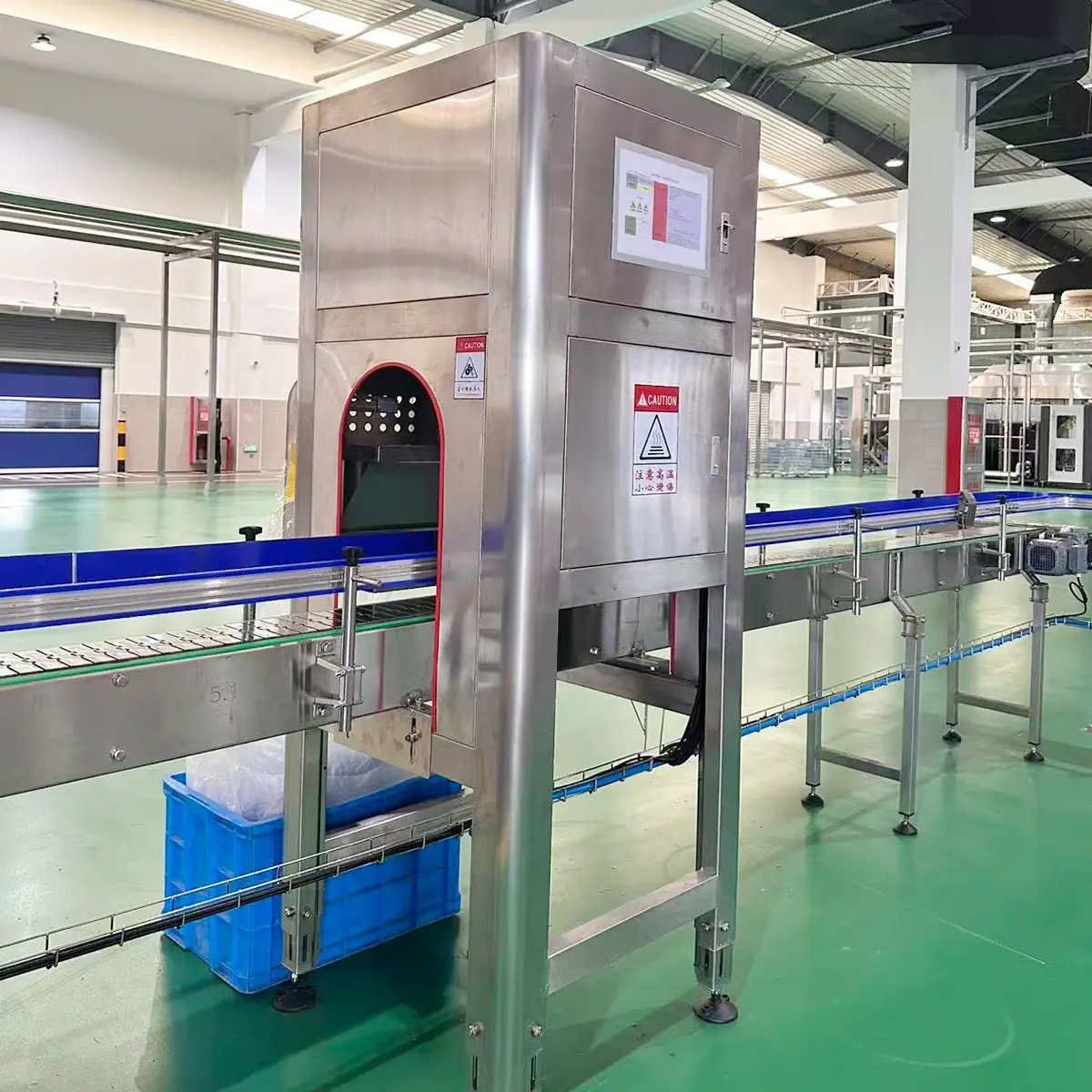

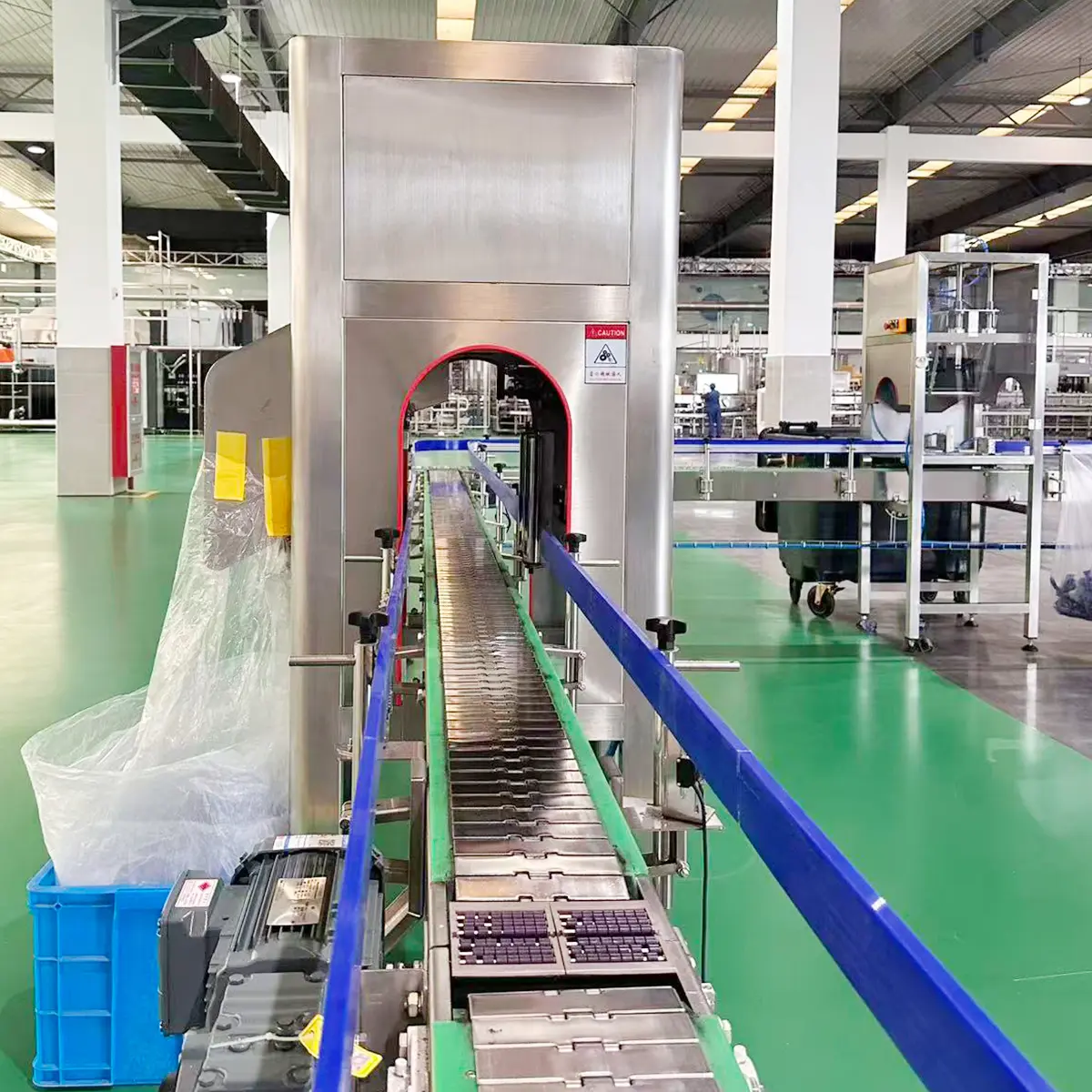

Conveying system: Single-row inlet/outlet design, connecting with the empty bucket conveyor of the production line.
Main frame and outer cover: 304 stainless steel frame should be used.

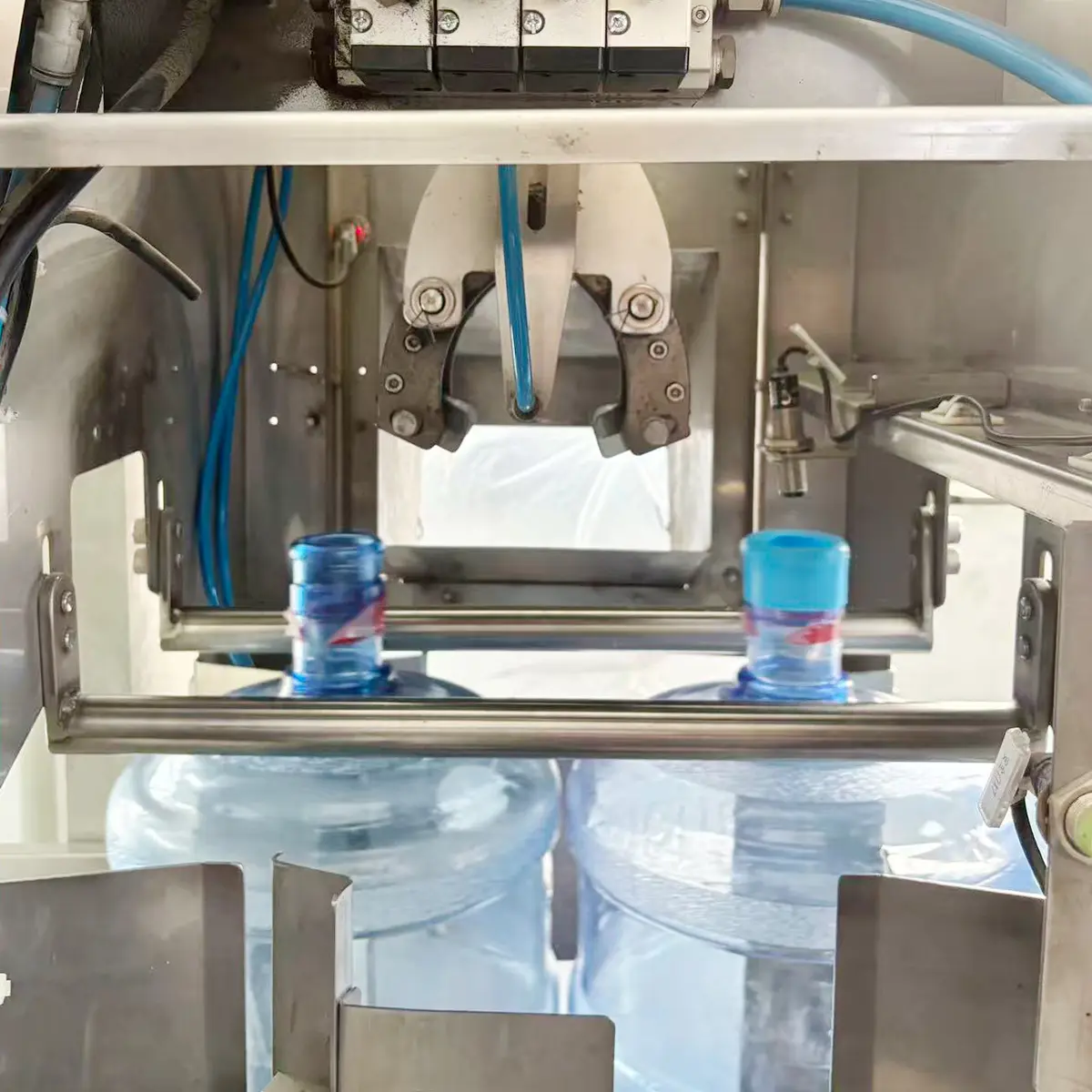

Film removal method: Electric high-temperature hot air jet cutting and blowing should be used for film removal.
Positioning method: Photoelectric detection + pneumatic positioning should be used.
Equipped with capless detection to ensure no cap is removed.
Centralized recycling of bucket caps and waste film; simple overall structure and high reliability.
Independent electrical control; AIRTAC pneumatic components.
Equipped with a capless rejection device.

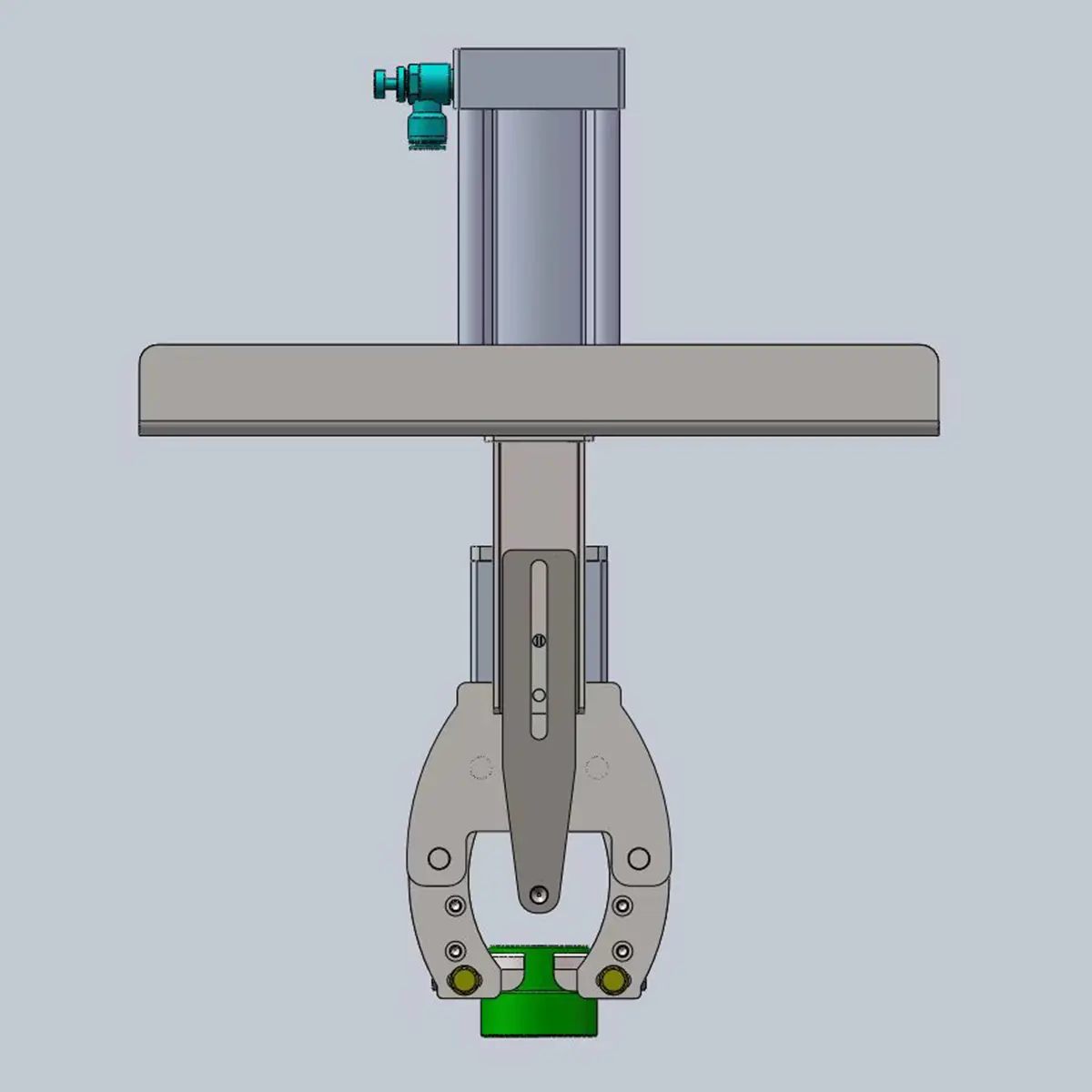

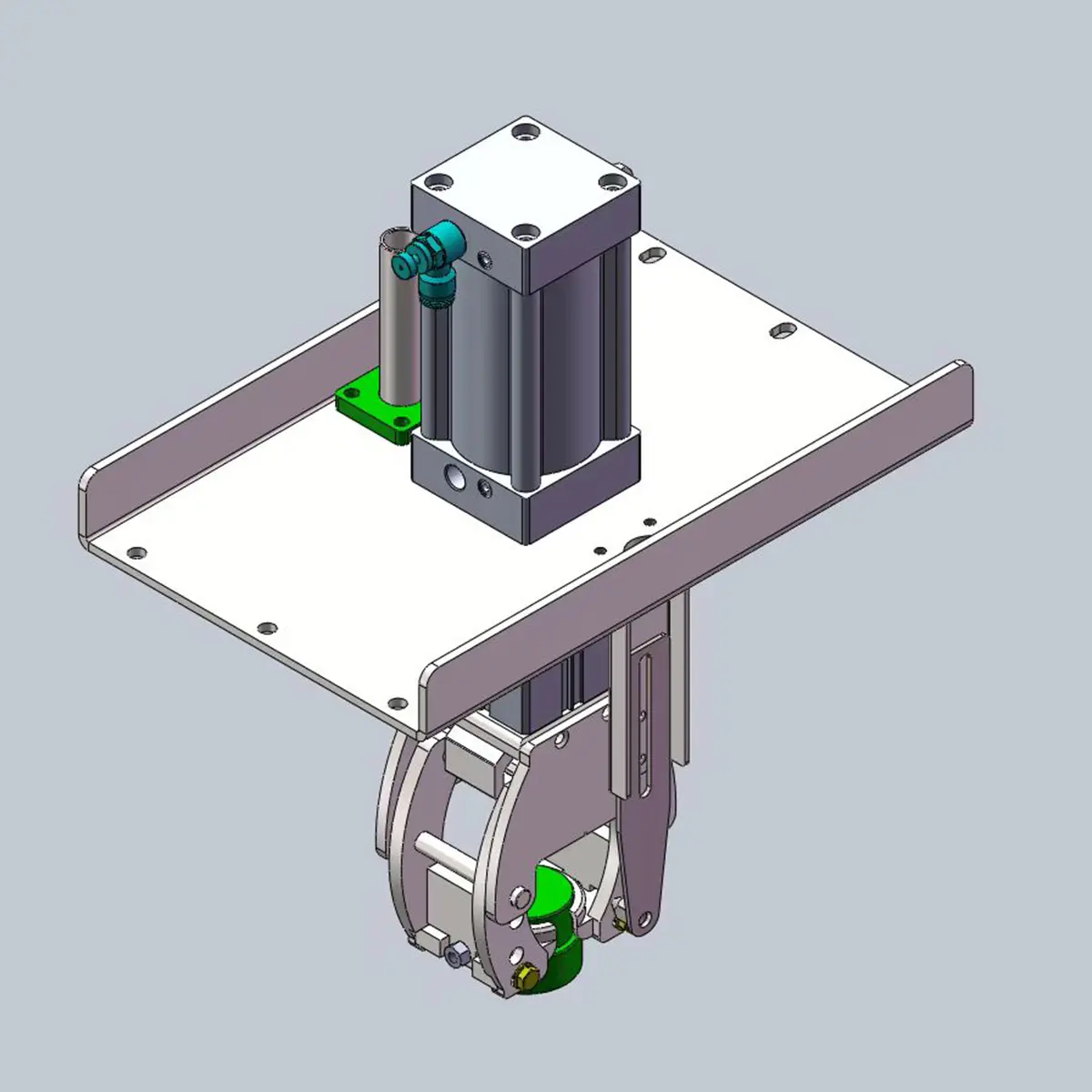

Movement method: Cylinder-driven lifting method should be used.
Operation method: PLC automatic control, automatic detection of bucket entry.
Safety signs: Warning signs to prevent burns and pinching.
